Portable ECMO Transport System

OASSIST® ECMO

A portable ECMO system made in China, suitable for bedside use and patient transport in various scenarios.

Model
STM001 Series
Registration No.
GXZZ20233100213
Last updated
2026-07-14
#Bedside/Transport Modes#Combined Electric/Manual Pump Configuration#4 kg, 3 hours#Second Flow Port Design
OASSIST® ECMO

DESCRIPTION

Product Introduction

01

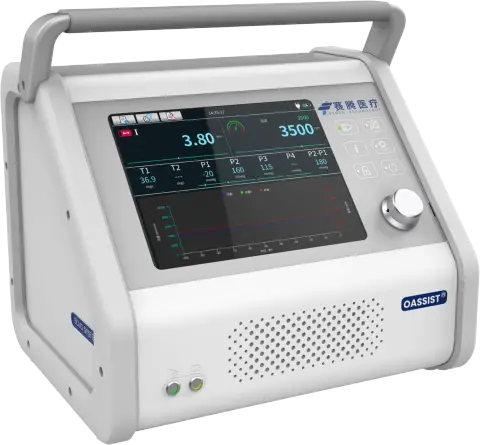

Console

·Used together with the console and pump head driver to achieve integrated control ·Supports the addition of one extra flow monitoring channel ·Provides multi-parameter monitoring and safety alarms

Console
02

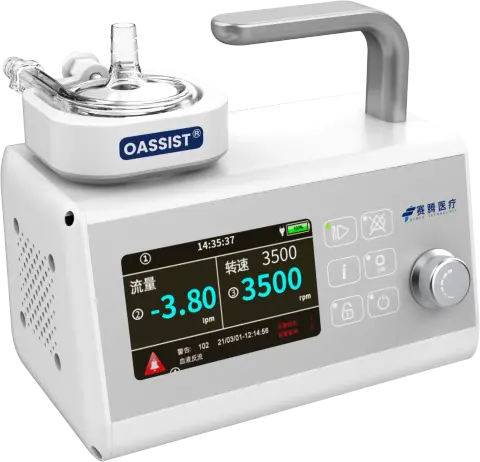

Pump Head Drive

·Lightweight design of the pump head driver, portable and independent; simply pick it up and go ·Built-in removable battery enables 3 hours of independent operation

Pump Head Drive
03

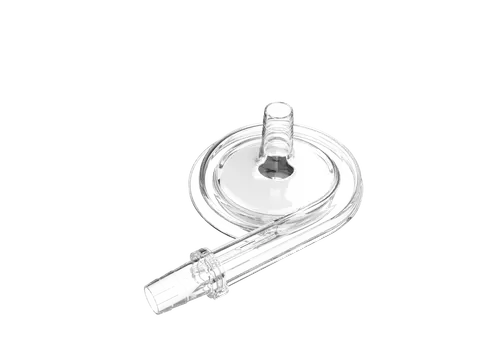

Centrifugal Pump Head

·For use with OASSIST® ECMO and compatible oxygenators ·For extracorporeal circulation lasting more than 6 hours ·Centrifugal pump head priming volume: 24 mL

Centrifugal Pump Head
04

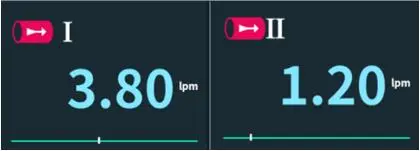

Second Flow Port Design

·Supports expansion to a second flow monitoring channel for VVA or VAV mode management ·When a branched circuit is present, connecting a second flow/bubble sensor to the console is recommended

Second Flow Port Design
05

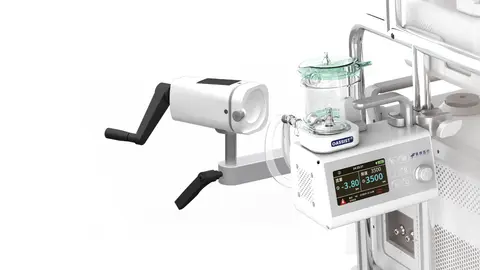

Configurable Electric/Manual Pump Combination

·Motorized/hand-crank pump combination configuration provides multiple backups ·The hand-crank pump driver can be used independently and displays the rotational speed

Configurable Electric/Manual Pump Combination
06

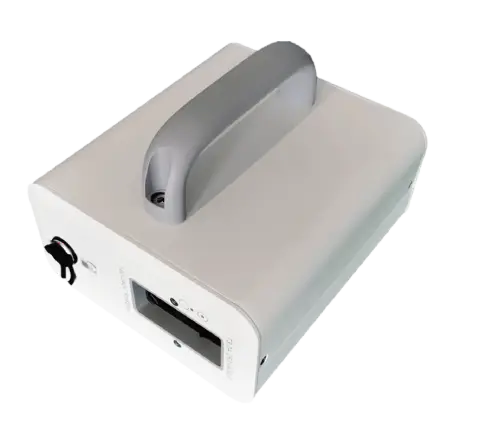

DC Power Supply

·Supports DC power supply, allowing runtime to be extended as needed ·Handles long-distance transport and long-duration extracorporeal circulation support with ease

DC Power Supply
01

Intended Use

OASSIST® ECMO provides power and safety monitoring during extracorporeal circulation. Used together with compatible single-use consumables, it provides pulmonary or cardiopulmonary function support

02

Core Functions

  • Bedside Mode

    1

    The console is used together with the driver to monitor flow, bubbles, pressure, temperature, and other parameters.

  • Portable Mode

    2

    The pump-head driver can operate independently and can be used for extended periods with a DC power supply, making it suitable for in-hospital transfer and long-distance transport.

  • Monitoring Functions

    3

    · Controls and monitors the patient's extracorporeal circulation, records operating data, and communicates with the pump-head driver · Flow/bubble ×2 | Pressure monitoring ×4 | Temperature monitoring ×2

  • Safety Design

    4

    Features a zero-flow mode and a bubble intervention mode, with 3 warning levels and clearly presented alarm information.

  • Second Flow Port Design

    5

    When a branched circuit is used, connecting a second flow/bubble sensor to the console is recommended.

  • 4 kg, 3 Hours: Portable Pump Drive

    6

    · Replaceable batteries or a DC power supply enable extended standalone operation · Provides extracorporeal circulatory support during patient transport or in environments without access to mains power

03

Precautions

·For contraindications and precautions, refer to the instructions for use ·This product may only be used by trained professionals
